HVAC System for Automotive Vehicles

Advanced climate control solutions for high-end automotive infrastructural projects

Model: BH60 | AN25BW24001_00

Premium Automotive Climate Control

Engineered for luxury vehicles and high-performance applications

Key Features

Precision Temperature Control

Advanced thermostatic expansion valve system ensures accurate temperature management for optimal passenger comfort.

High-Efficiency Performance

Optimized compressor and condenser design delivers maximum cooling performance with minimal energy consumption.

Eco-Friendly Refrigerant

Utilizes R-134a refrigerant with low environmental impact and compliance with global regulations.

Advanced Diagnostics

Integrated troubleshooting systems for noise diagnostics, pressure measurement, and failure analysis.

Multi-Speed Air Distribution

Variable speed blower with optimized air distribution system for consistent cabin comfort.

Safety Protection Systems

Includes thermal protection switch, fusible plug, pressure relief valve, and high-pressure switch.

Advanced Component Technology

Precision engineering for maximum reliability and performance

Core Components

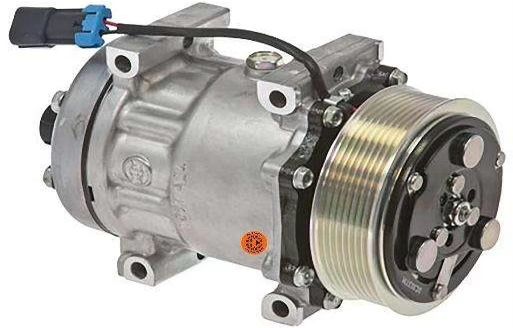

Compressor System

Features electromagnetic clutch and piston-type design for reliable operation. Includes comprehensive failure diagnostics and troubleshooting systems.

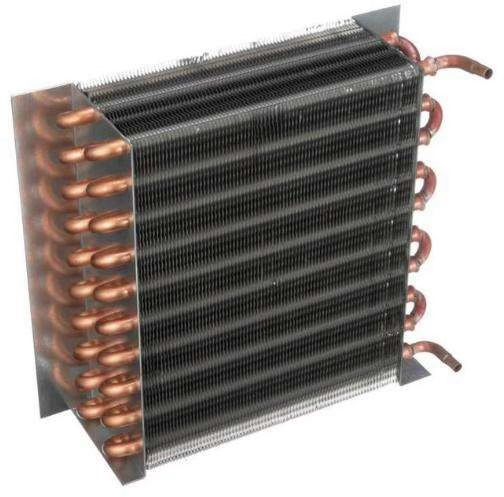

Condenser Unit

Parallel flow design optimized for R-134a refrigerant. Engineered for maximum heat dissipation and durability in automotive environments.

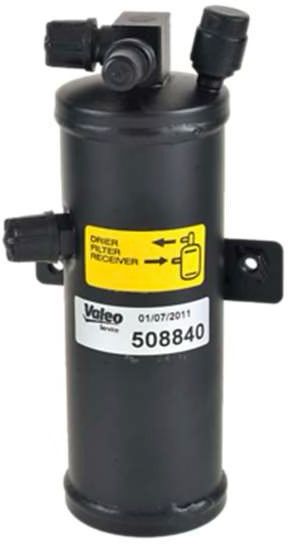

TXV & Receiver/Dryer

Thermostatic expansion valve precisely controls refrigerant flow. Receiver/dryer combination ensures clean, moisture-free refrigerant circulation.

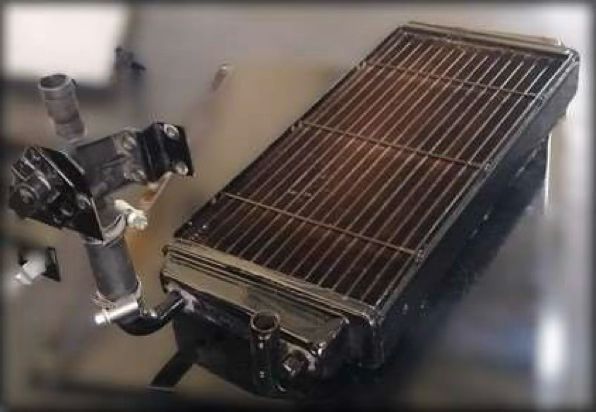

Evaporator Unit

Advanced construction for optimal heat absorption. Includes troubleshooting systems for efficient maintenance and failure prevention.

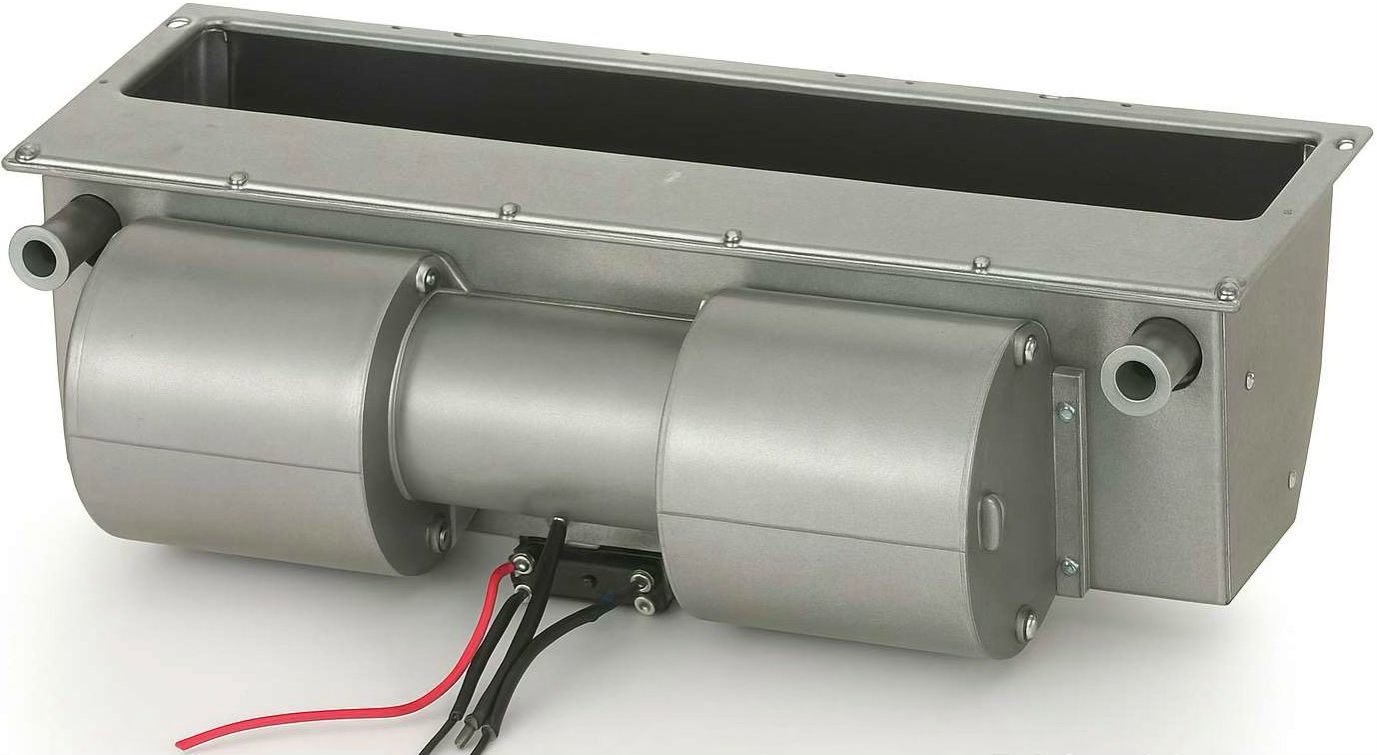

Air Management

Multi-speed blower with precision air distribution. Designed for consistent airflow and cabin comfort in all conditions.

Technical Specifications

Refrigerant Type

R-134a (HFC-134a)

Compressor Type

Piston Type with Electromagnetic Clutch

Condenser Design

Parallel Flow (Optimized for R-134a)

Flow Control

Thermostatic Expansion Valve (TXV)

Moisture Control

Integrated Receiver/Dryer System

Pressure Control

High-Pressure Switch & Fusible Plug

Air Distribution

Variable Speed Blower with Multi-port System

Connections

Specialized Fittings with "O" Ring Seals

Cutting-Edge Engineering

Innovative solutions for modern automotive climate control

Environmental Compliance

R-134a Refrigerant System

The BH60 Model utilizes environmentally responsible R-134a refrigerant that meets global automotive standards.

Our system includes advanced leak detection points and diagnostic procedures to maintain optimal performance while minimizing environmental impact.

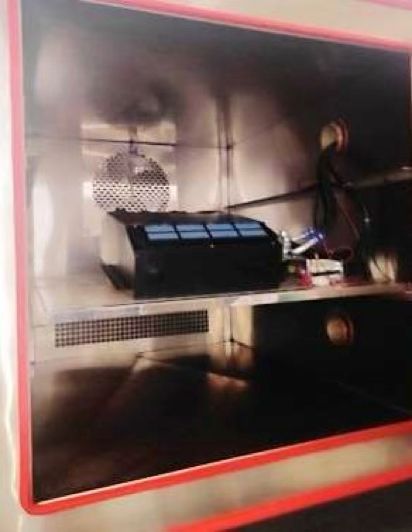

The product is Tested in Climatic Chamber to ensure that the equipment’s performance is same in all climatic conditions.

Key features include:

Compliance with international environmental regulations
Common leak area identification system
Refrigerant level monitoring capabilities
Eco-friendly manufacturing processes
